Fluid mechanics plays a crucial role in civil engineering, particularly in understanding pressure distribution in fluids. Among its fundamental concepts are hydrostatic pressure, manometers, and Pascal’s law—all essential for designing hydraulic structures, pipelines, and pressure measurement systems.
Understanding Pressure in Fluids

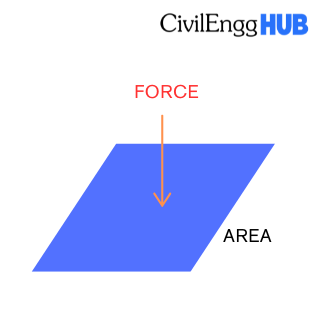

- Pressure is defined as the force exerted by a fluid per unit area.
Units of Pressure:
- 1 Pascal (Pa) = 1 N/m²
- 1 bar = Pa
- 1 atm = 101.325 kPa
- 1 atm = 14.7 psi
If the pressure distribution is non-uniform, it can be represented as the sum of differential pressures:
Hydrostatic Pressure
Hydrostatic pressure is the pressure exerted by a fluid at rest due to its weight. It increases with depth and is given by the formula:
where:
- P = Hydrostatic pressure (Pa)
- p = Fluid density (kg/m³)
- g = Acceleration due to gravity (9.81 m/s²)
- h = Depth of the fluid (m)

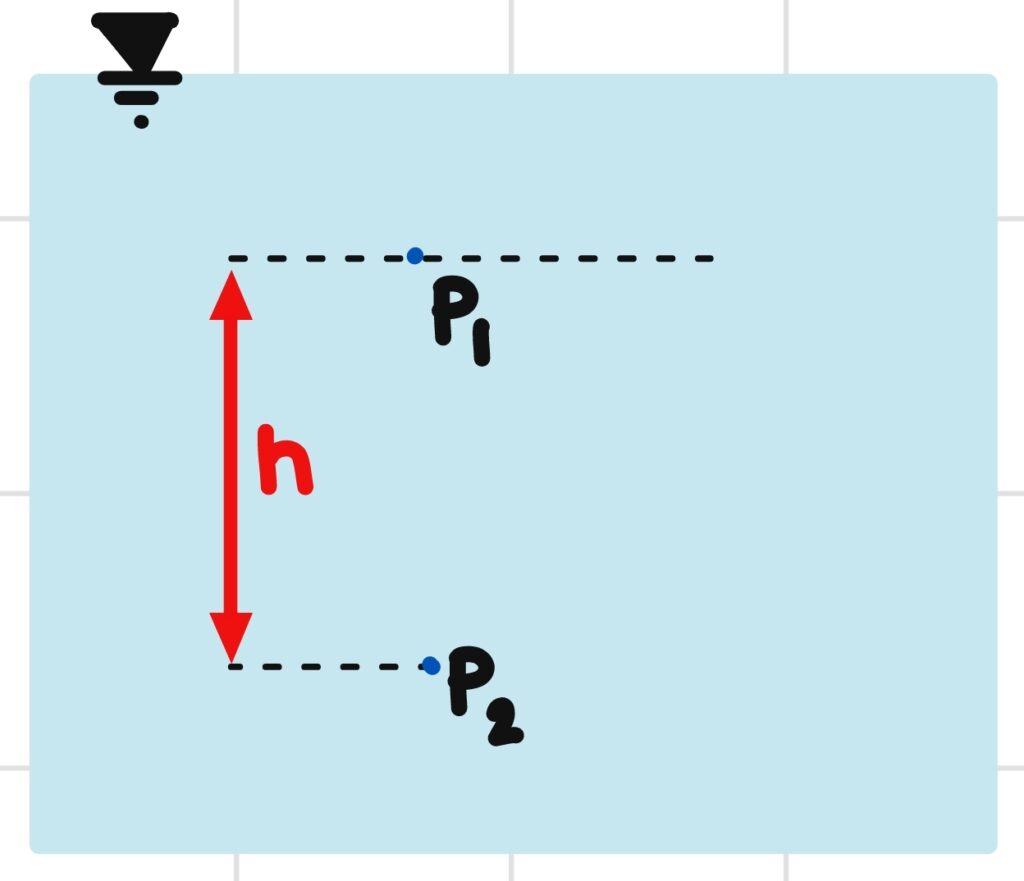

Pressure Variation with Depth

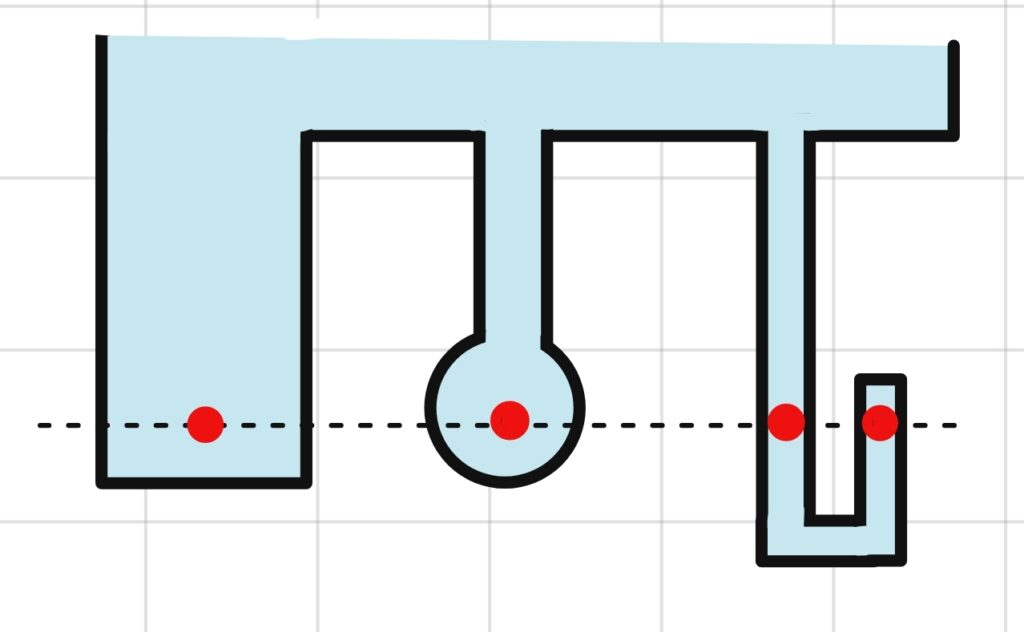

The pressure at an point of a static homogenous fluid is the same in all directions.
Also, pressure in a fluid increases with depth, thus, the formula is given by the hydrostatic pressure equation:
Absolute, Atm and Gage Pressure
1. Atmospheric Pressure
is the pressure exerted by the atmosphere. It varies with altitude and weather conditions. At sea level, the standard atmospheric pressure is:
- 101.325 kPa (kilopascals)
- 1 atm (atmosphere)
- 760 mmHg (millimeters of mercury)
- 14.7 psi (pounds per square inch)
Take note: atmospheric pressure changes with elevation.
2. Absolute Pressure
Absolute pressure is measured relative to a perfect vacuum, meaning it includes atmospheric pressure. It is the true pressure within a system and is calculated as:
3. Gauge Pressure
Gauge pressure is the pressure measured relative to atmospheric pressure. It indicates the pressure above or below the atmospheric level. Gauge pressure can be positive or negative:
- Positive gauge pressure occurs when the measured pressure is above atmospheric pressure (e.g., in a pressurized tank).
- Negative gauge pressure (vacuum pressure) occurs when the measured pressure is below atmospheric pressure.
EXAMPLE 1.0
If a liquid has depth of 3 meters, and in this depth is a pressure of 20 kPa. What is the specific gravity of the liquid?
EXAMPLE 2.0
If the pressure point in the ocean is 120 kPa, what is the pressure 30 m below this point?
EXAMPLE 3.0
If the tank has an atmospheric pressure of 102.5 kPa, and the gage attached to the tank reads 256 mmHg vacuum. What is the absolute pressure within the tank?
